⭐️ Firewall Architectures | Security+ Study Review

As part of my Security+ studies, I broke down four common firewall architectures. Most diagrams online are simplified and conceptual — I wanted to make technical representations that show how these would actually look in practice.

1. Packet Filtering Router

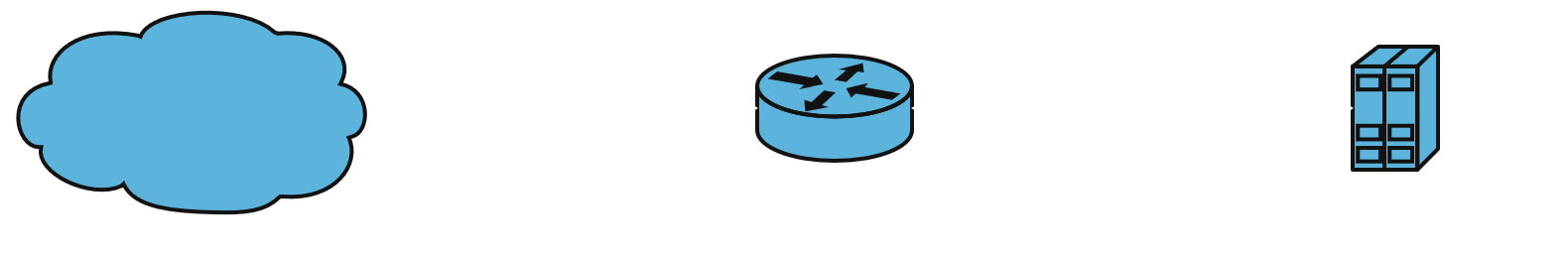

Packet Filtering Router
Concept: Filters traffic based on IP, protocol, and port. No deep inspection.

  • Simple, low-cost.
  • Weak against spoofing or advanced attacks.

2. Screened Host Firewall

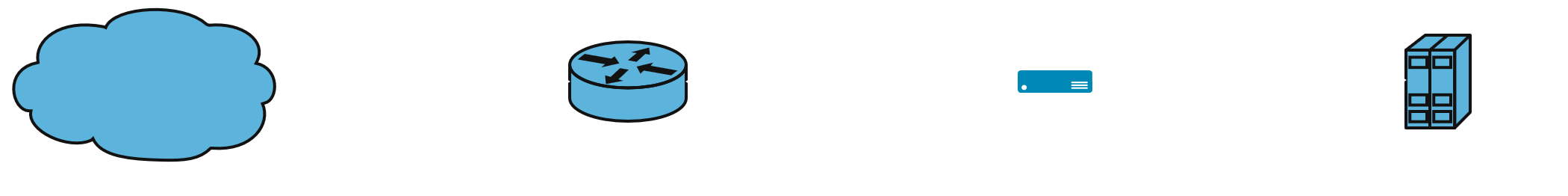

Screened Host Firewall
Concept: Packet filtering router protects a bastion host (sacrificial host).

  • Router drops obvious bad traffic.
  • Bastion host handles authentication/proxy duties.
  • If bastion is compromised, LAN is at risk.

3. Dual-Homed Host Firewall

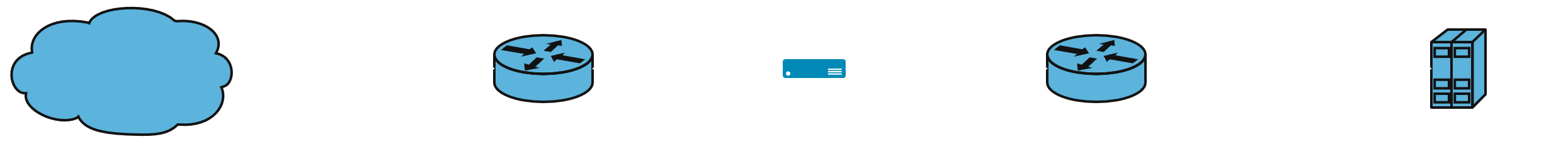

Dual-Homed Host Firewall
Concept: A single host with two NICs (one untrusted, one trusted).

  • Host enforces firewall rules between interfaces.
  • No direct packet forwarding between NICs.
  • Rarely used standalone today, but key exam concept.

4. Screened Subnet (DMZ)

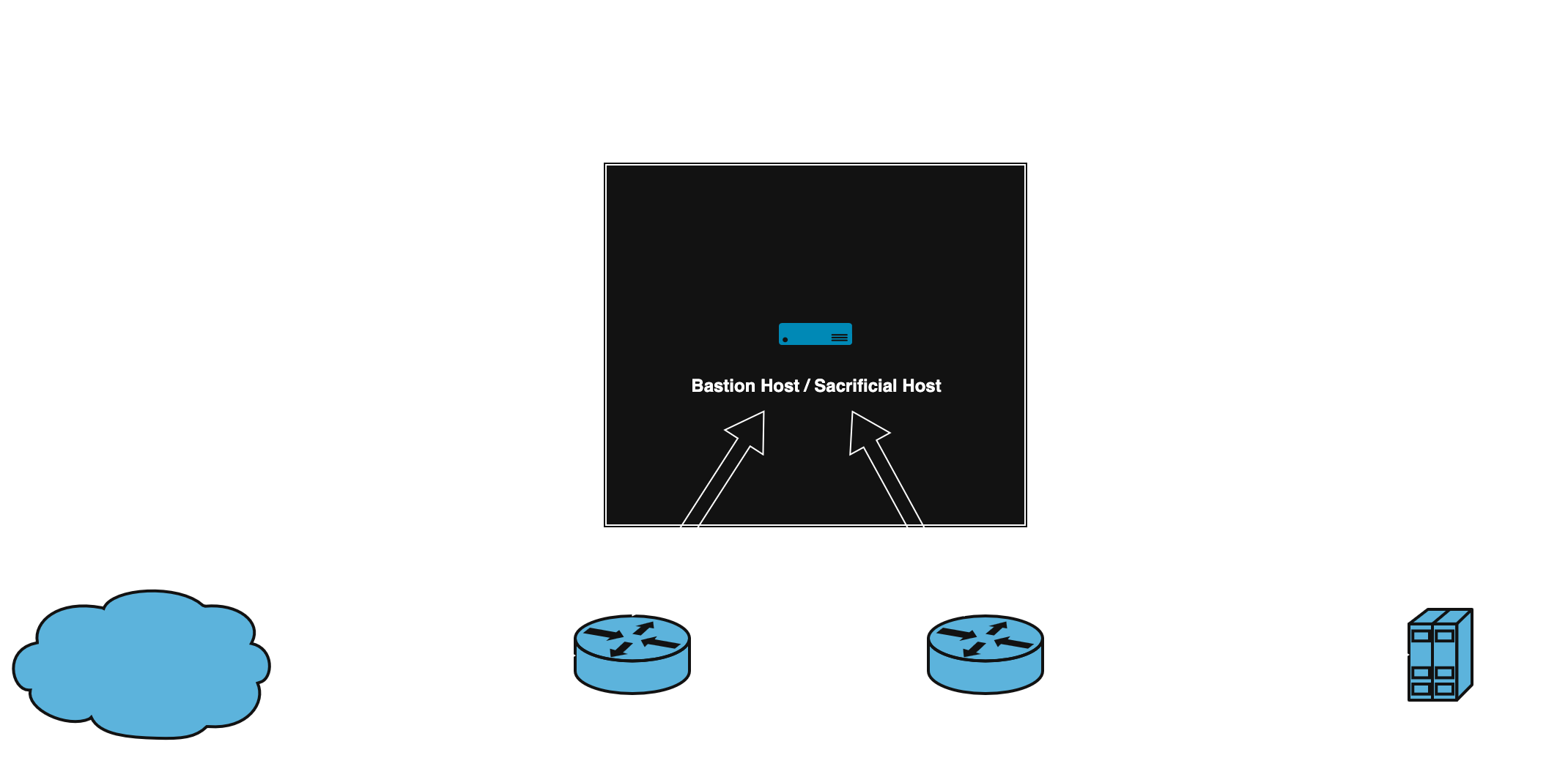

Screened Subnet Firewall
Concept: Adds a DMZ segment with two routers/firewalls.

  • Public-facing servers live in DMZ.
  • Even if compromised, attacker faces second firewall before LAN.
  • More secure, more complex.

Reflection

Drawing these helped me clear up the confusion between conceptual diagrams (what you see in textbooks) and technical implementations (what you’d actually deploy). Posting them here to reinforce memory — and to help others studying Security+ who might be struggling with the same.
